AutoCAD Templates for Architectural and Civil Engineering Drawings
najibfarrasTemplates to speed up the creation of working drawings in CAD applications, such as for creating architectural and civil structural working drawings. The most important advantage of using a template is to save time working on drawings, so that drawing objects that are made repeatedly do not need to be done if using a template.
R.1 version template specifications:
1. Product type: drawing template (cad, pdf, ctb)
2. Fill in the template:
- Standard line thickness
- Standard line type
- Standard image scale
- Standard layer for architectural drawings
- Standard layer for civil structure drawings
- Standard dimension style
- Standard material notation
- Standard graphic notation: material tags, grid notation, elevation notation, section notation, etc.

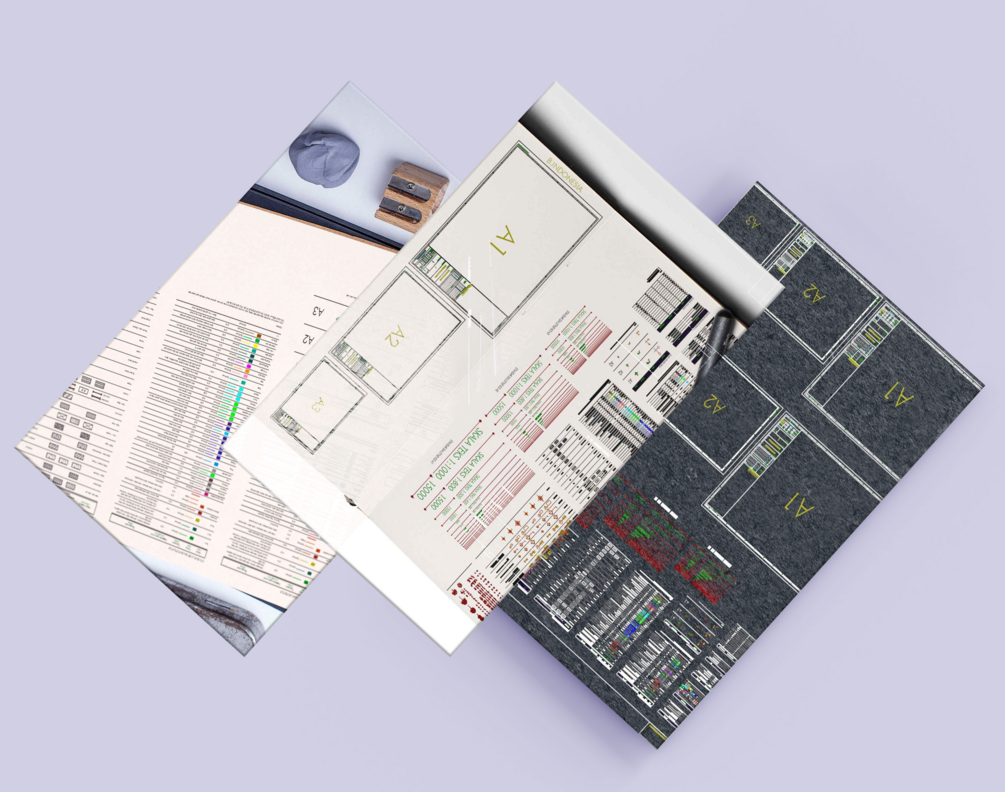

- Standard label/image header for ISO sizes A1, A2, A3
- Standard plot style (.ctb) 3 color variations: RED, BLACK, BLUE
- Drawing library for pictures of people and plants
- Examples of floor plans, views and sections that have applied this template style.
3. Units: millimeters (mm)
4. Number input unit: millimeter (mm)
Other information:
Chat with us before ordering 😊
Customers will receive a pre-configured drawing template in CAD, PDF, and CTB formats, featuring standardized specifications for line thickness, layer organization, dimension styles, material notation, and plot styles, along with a drawing library and examples, to streamline the creation of architectural and civil structural working drawings.
